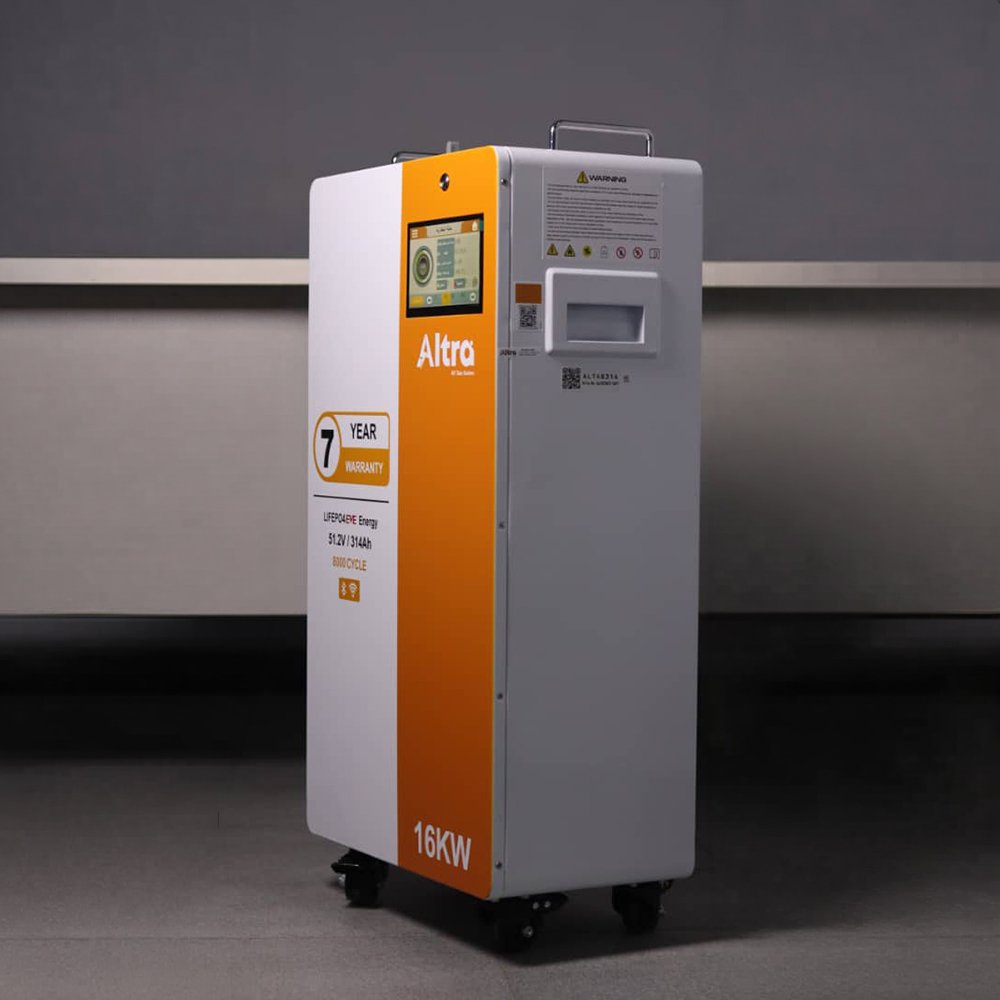

Altra Battery 16kW

Built for higher-demand backup and daily energy storage, the Altra 16kW battery delivers strong, stable performance for systems that need longer runtime and better autonomy. With a 51.2V / 314Ah configuration, it supports smoother power continuity for essential loads in residential and light commercial installations. Using safe LiFePO4 technology, it provides consistent output and dependable operation across real-world use. Its robust design is made for long service life, helping your system stay steady while reducing performance drop over time. With CAN/RS485 communication, it integrates smoothly with compatible inverters for smarter monitoring and control. Backed by a 7-Year Warranty, it’s a confident upgrade for reliable storage, stronger backup, and long-term peace of mind.

Category:

Description

Item Specification
Model Alt48314
Battery Type LiFePO4 (Lithium Iron Phosphate)
Nominal Energy 16 kWh
Nominal Capacity 314 Ah
Nominal Voltage 51.2 V
Operating Voltage Range 40 – 58.4 V
Recommended Discharge Current 157 A
Max Continuous Charge Current 200 A
Peak Current 400 A
Dimensions (±2) 250 × 450 × 780 mm
Net Weight 125 kg
Communication CAN, RS485
Protection Degree IP21
Cycle Life 8000 cycles
Max Parallel Quantity Up to 16
Cells Type EVE – MB3 – 314
Certifications ROHS, IEC62619, UN38.3, UL1973, UL9540A, ISO9001, ISO14001, ISO45001
Warranty 7 Years
